TPMS Programming Tool - ATEQ Hamaton H47

TPMS Programming Tool - ATEQ Hamaton H47

The Hamaton H47 has been manufactured in partnership with ATEQ and packs many features into a compact design, including an integrated OBDII module. It also comes with free software updates for five years and a 2 year warranty.

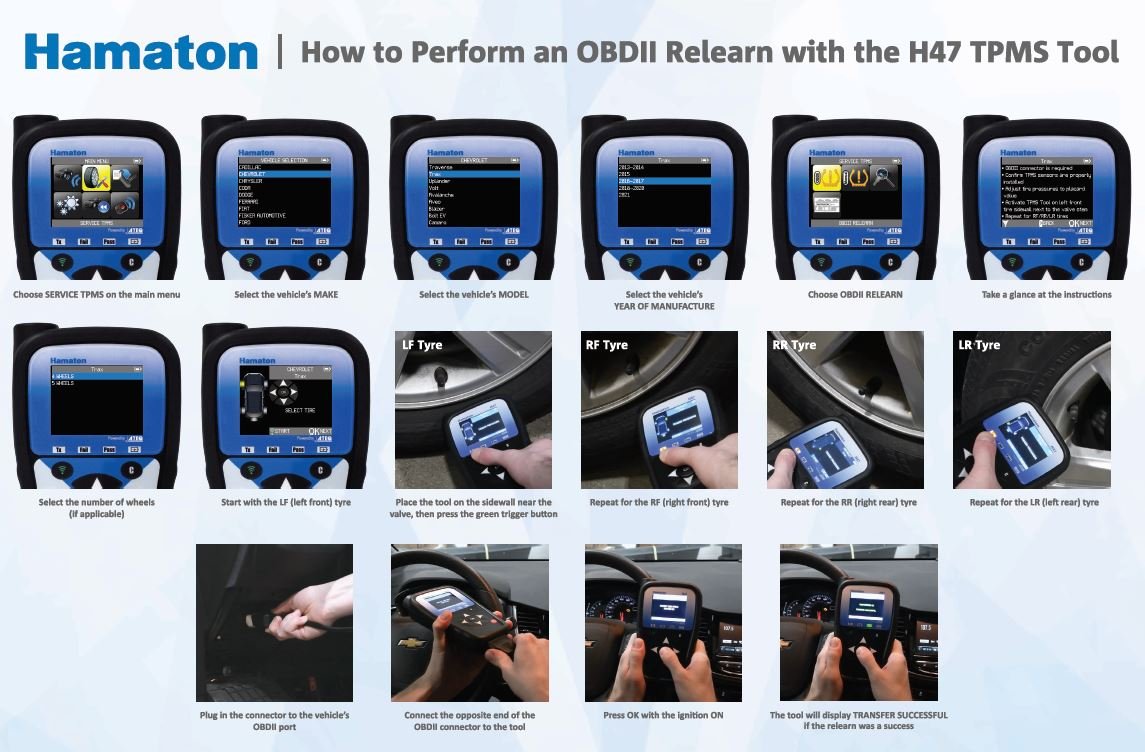

The H47 also includes ATEQ’s patented Sync-ID technology. As a result, technicians can perform an OBDII relearn procedure on over 90% of vehicles that enter the workshop. An OBDII relearn is much easier than a manual relearn procedure because it is a very similar process for all vehicles.

Other significant features are Manual ID Entry and Retrieve ID, which, respectively, allow users to input sensor IDs or obtain them from the ECU. Subsequently, technicians can use the sensor ID to configure or program a new sensor, and since the ID is the same, the technician can bypass the relearn process altogether. These features are ideal if cloning is not possible, for example, if the sensor battery is flat.

The H47 can configure EU-Pro & T-Pro TPMS Sensors and program Hybrid NFC/3.5
sensors. It can also read 100% of OE and aftermarket sensors. Furthermore, its database contains vehicle information for three key regions (Europe, North America, and Australasia/Russia), which is kept up to date thanks to frequent software releases.

Features & Benefits:

Reads 100% of OE and aftermarket sensors.

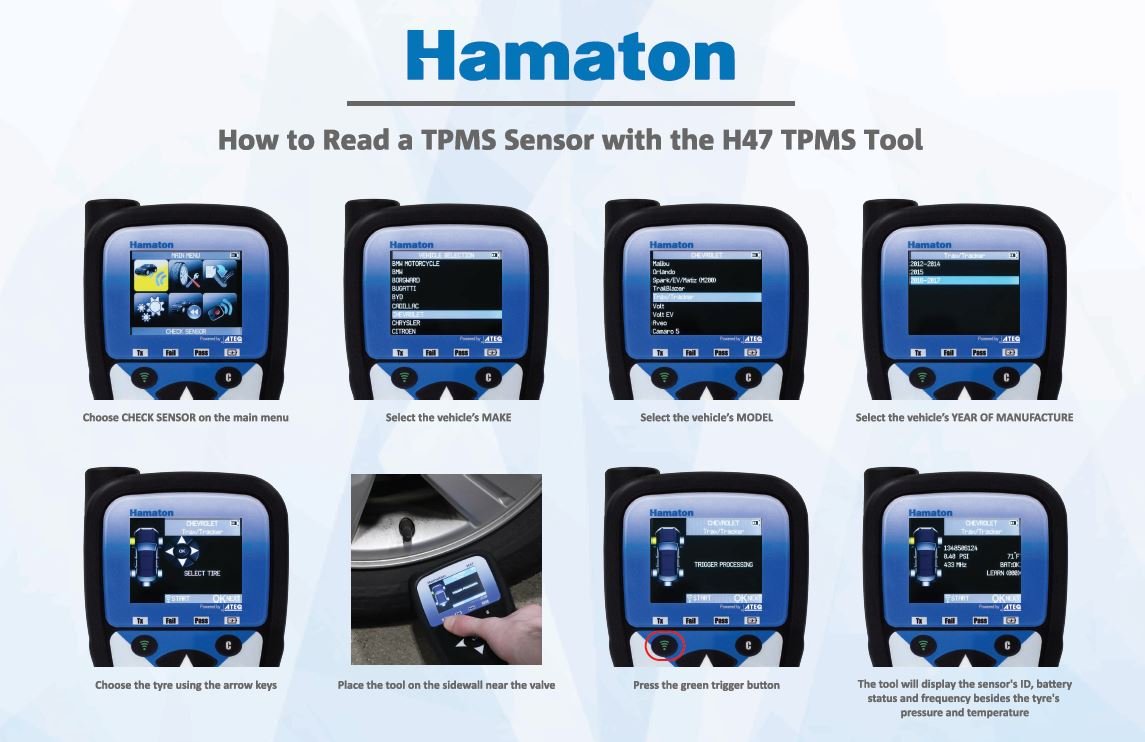

Displays sensor data - ID, Tyre Pressure, Tyre Temperature, Battery Status & Sensor Frequency.

Provides Manual, Auto and OBDII Relearn Procedures.

Built in OBDII module performs ECU reset in under 2 minutes.

Configures all EU-Pro & T-Pro generation Sensors and programs Hybrid 3.5 sensors.

Large vehicle coverage (90% Plus) and expanding due to frequent database updates.
